LED Drivers-Backlight背光

Boost + Constant Current Regulator LED Backlight Driver For Middle/Large Size Pamt(升压恒流－中大尺寸背光)
No
Part
　
LED Sink Current (mA)
　
Dimming Control
Stand By
Maximum
Supply
number

Channel

Channel
Current (uA)
LED Number
Voltage (V)
Package

1

A706

6

5 ~ 40

PWM Control

20

60

4.5 ~ 25

QFN4x4-20L

2

A707

3

5 ~ 30

PWM Control

20

30

4.5 ~ 25

TSSOP-14

3

A712
10
5 ~ 30
PWM Control
10

40
2.3 ~ 5.5
TSSOP-20

4

A723

8

5 ~ 30

PWM Control

20

96

4.5 ~ 25

QFN4x4-20L

5

A724

8

5 ~ 30

PWM Control

20

96

4.5 ~ 25

QFN4x4-24L

6

A725

6

5 ~ 30

PWM Control

20

72

4.5 ~ 30

QFN4x4-20L
Constant Current Regulator LED Backlighting For Mobile Phone-恒流驱动-手机应用
No
Part
LED Sink Current (mA)
Dimming Control
Stand By
Supply
number
Channel
Channel
Current (uA )
Voltage (V)
Package

1

AMC7110

3

20

PWM Control

0.1

2.7 ~ 6

SOT-23-6L

2

AMC7111

4

20

PWM Control

0.1

2.7 ~ 6

MSOP-8

3

AMC7113

3

15

PWM Control

0.1

2.7 ~ 6

SOT-23-6L
LED Drivers-Lighting照明
Switching Converter-开关模式
Part
　
Switch Peak
Current sense

Operation

Stand By
Supply
No
number

Type
current(A)
(v)
Frequency (KHz)
Current (uA)
Voltage (V)
Package

1

AMC7150
Buck
1.5
0.33
50 ~ 200
N/A
4 ~ 40
TO-252-5L
2
AMC3202
Boost
1.5
N/A
280
12
2.7~ 30
SO-8/ QFN-4x4
3
A704
Buck
N/A
0.5
65
5
8 ~ 32
SOT-23-6L
4
A710
Boost
1.6
0.2
640/1320
0.1
2.6 ~ 5.5
MSOP-8
5
A718
Buck
1.5
0.2(LM3402,LM3404)
100 ~ 500
180
6 ~ 35
SOP-EP-8
6
A722
Boost
1.5
0.2
650 ~ 1000
10
4.5 ~ 25
QFN - 3x3
Linear Type Constant Current Regulator-线性模式 　
Part
LED Sink Current (mA)
Stand By
Supply
No
number
Channel
Channel
Dimming Control
Current (uA )
Voltage (V)
Package

1

A701

6

5 ~ 40

PWM Control

4

2.9 ~ 6

QFN3x3/MSOP-10

2

A702

6

5 ~ 40

PWM Control

40

6~50

QFN3x3/MSOP-10

3

A703

2

20 ~ 150

PWM Control

40

6~50

SO-8-EP

4

A705

1

190/210/230/250/270/
290/310/330/350

N/A

N/A

2.7~12

SOT-89/TO-252

5

A708

3

20

PWM Control

0.1

2.7 ~ 12

TSOT-23-6L

6

A709

1

20/40

N/A

N/A

2.7 ~ 12

SOT-23

7

A711
1
300 ~ 1100
PWM Control
1
5 ~ 50
TO-263-5L/TO-252-5L/
TO-220-5L

8

A717

6

10 ~ 60

PWM Control

40

6 ~ 50

QFN3x3
9

A719
2
20
PWM Control
0.1
2.7 ~ 12
QFN2x2

10

A721

6/7/8/10

1 ~ 30

N/A

N/A

4.5 ~ 40

QFN3x3

11

A735

1

110/130/150/170/190/210/230/250/270/290/
310/330/350

N/A

N/A

2.7~6

SOT-89

12

AMC7110

3

20

PWM Control

0.1

2.7 ~ 6

SOT-23-6L

13

AMC7111

4

20

PWM Control

0.1

2.7 ~ 6

MSOP-8

14

AMC7113

3

15

PWM Control

0.1

2.7 ~ 6

SOT-23-6L

15

AMC7124

3

120

ENH/ENL

0.1

2.7 ~ 6

MSOP-8

16

AMC7135

1

350

N/A

N/A

2.7 ~ 6

SOT-89/TO-252

17

AMC7140

1

100 ~ 700

PWM Control

1

5 ~ 50

TO-252-5L

LED Protector　
No
Part Num.
Max Bypass Current
Trigger Voltage(v)
Drop-Out (v)
Monitoring Current (μA)
Package

1

AMC7169

500

5

1.1 (350mA)

100

QFN2x2
2
350
5
1.6 (350mA)
100
QFN2x2
3
700
5
1.6 (700mA)
100
SOT-89

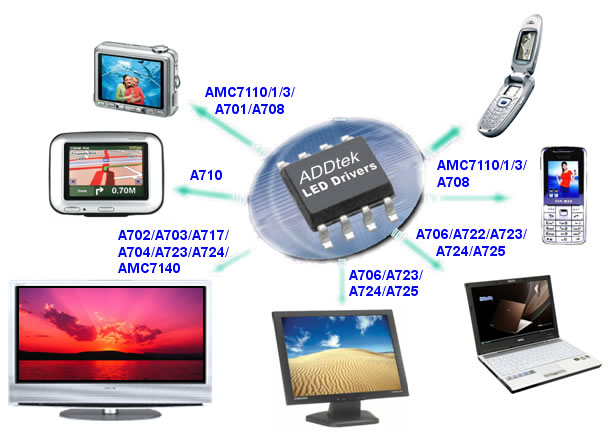

Main Application for LCD Panel Related Driver

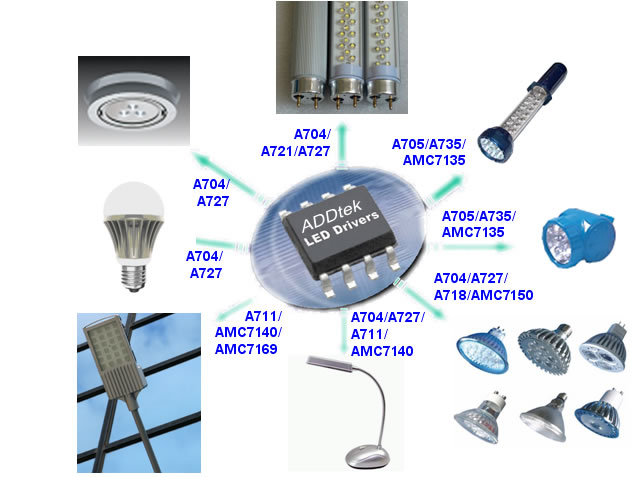

Main Application for ADD LED Driver for Lighting
