AMC7140 is a high voltage, low drop-out current egulator for maximum output current up to 700mA. The output current was decided by external resistor. The output sink current could be disabled via OE pin Build-in thermal protection to prevent the chip over heat damage.
Features
﹡0.5V Output Drop-out Voltage at 700mA.
﹡700mA Maximum Output Current.
﹡Output Current Controlled by External Resistor.
﹡3us Fast Response Output Stage Enable Control.
﹡Output Driving Voltage Up To 60V.
﹡TO-252-5L package
Applications
﹡High Power LED Driver
﹡RGB Full Color Power LED driver
﹡LCD Monitor/TV LED backlight Driver
﹡LED Table Lamp
>>> AMC7140 Data Sheet:

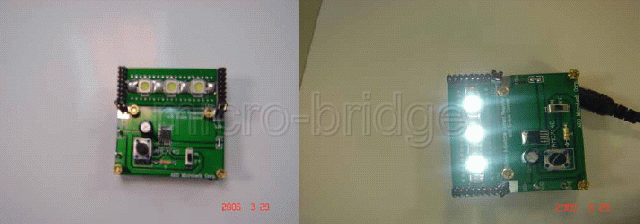

>>>AMC7140 EVM User Guide:
>>> AMC7140 for LED Streetlamp:
