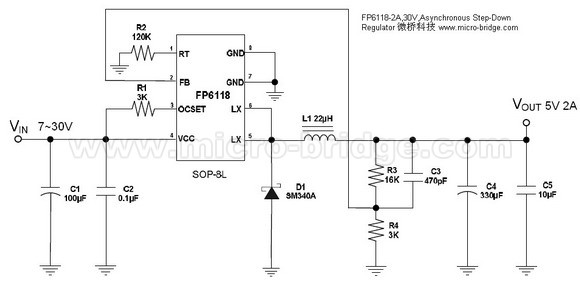

FP6118-2A,30V,Asynchronous Step-Down Regulator


FP6118-2A,30V,Asynchronous Step-Down Regulator DataSheet

General Description
    The FP6118 is a buck switching regulator for wide operating voltage application fields. The FP6118 includes a high current P-MOSFET, high precision reference (0.8V) for comparing output voltage with a feedback amplifier, an internal soft start timer and dead-time controller.The oscillator is for controlling the maximum duty and PWM frequency.

Features
 Precision Feedback Reference Voltage: 0.8V (2%)
 Wide Supply Voltage Operating Range: 3.6 to 30V
 Low Current Consumption: 3mA
 External Set Oscillator Frequency: 100~250KHz
 Internal Soft-Start Function (SS)
 Built-in P-MOSFET for 2A Loading Capability
 Over Current Protection
 Package: SOP-8L
