AD85020-2x20W Stereo Digital Audio Amplifier

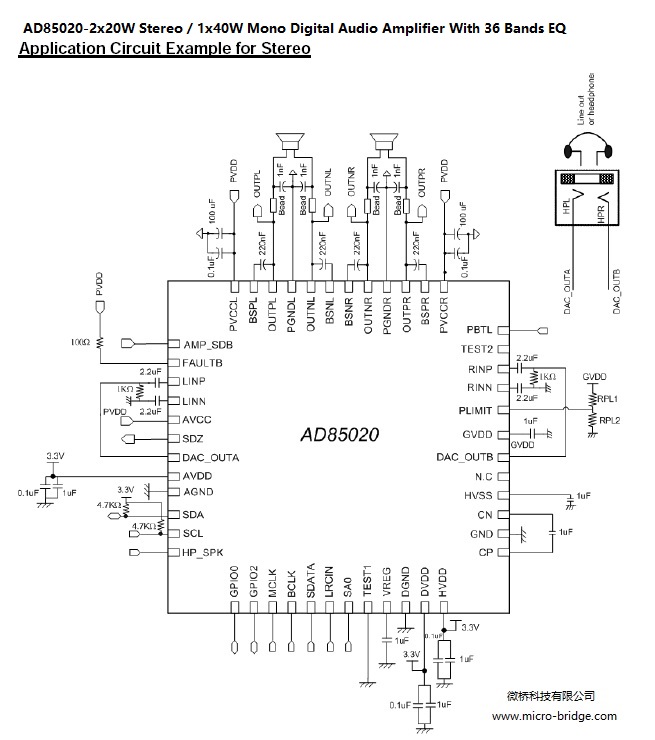

AD85020-2x20W Stereo/1x40W Mono Digital Audio Amplifier With 36 Bands EQ Functions DataSheet

Description
    AD85020 is a digital audio amplifier capable of driving
a pair of 8Ω,20W or a single 4Ω,40W speaker output.
In headphone output mode, it can delivered 25mW
into 32Ω load for head phone output.
AD85020 provides advanced audio processing
functions, such as volume control, 36 EQ bands, audio
mixing, 3D surround sound and Dynamic Range
Control (DRC). These are fully programmable via a
simple I2C control interface. Robust protection circuits
are provided to protect AD85020 from damage due to
accidental erroneous operating condition. The full
digital circuit design of AD85020 is tolerant of noise
and PVT (Process, Voltage, and Temperature)
variation. AD85020 is pop free during instantaneous
power on/off or mute/shut down switching because of
its robust built-in anti-pop circuit

Features
 16/18/20/24-bits input with I2S, Left-alignment
and Right-alignment data format
 Multiple sampling frequencies (Fs)
8kHz and 32kHz / 44.1kHz / 48kHz and
64kHz / 88.2kHz / 96kHz and
128kHz / 176.4kHz / 192kHz
 System clock = 64x, 128x, 192x, 256x, 384x,
512x, 576x, 768x, 1024x Fs
MCLK system:
256x~4096x Fs for 8kHz
64x~1024x Fs for 32kHz / 44.1kHz / 48kHz
64x~512x Fs for 64kHz / 88.2kHz / 96kHz
64x~256x Fs for 128kHz / 176.4kHz / 192kHz
BCLK system:
64xFs for 32kHz / 44.1kHz / 48kHz
64xFs for 64kHz / 88.2kHz / 96kHz
64xFs for 128kHz / 176.4kHz / 192kHz
 Supply voltage
1.8V or 3.3V for digital I/O
3.3V for analog circuit and headphone driver
4.5V~26V for loudspeaker driver
 Speaker or headphone out selection
 Line-driver maximum output swing into 10kΩ
- 2Vrms at 3.3V supply voltage
 Headphone output power
25mW x 2ch into 32Ω @ 0.1% THD+N
 Speaker output power
20W x 2ch into 8Ω @ <1% THD+N@24V
 Sound processing including:
36 bands parametric speaker EQ
Volume control (+24dB~-103dB, 0.125dB/step)
Dynamic range control
Three Band plus post Dynamic range control
Power Clipping
Programmed 3D surround sound
Channel mixing
Noise gate with hysteresis window
Bass/Treble tone control
DC-blocking high-pass filter
Pre-scale/post-scale
Virtual Bass/exciter
Smart bass
 Anti-pop design
 Level meter and power meter
 I2S output with selectable audio DSP point
 Supports I2C control without clock
 I2C control interface with selectable device
address
 Internal PLL
 Support initial EEPROM setting
 Protection
■ OCP
■ OVP
■ UVP
■ OTP
■ DCP
 Closed-loop structure with good PSRR
 Supports Filter-less operating

Applications
 Boom-box, CD and DVD receiver, docking system
 Powered speaker
 Wireless audio
 AI speaker
