EMC5754-1A线性锂电池充电管理IC


EMC5754-Standalone Linear Li-Ion Battery Charger with Thermal Regulation in SOT-25  SOP-8-EP DataSheet

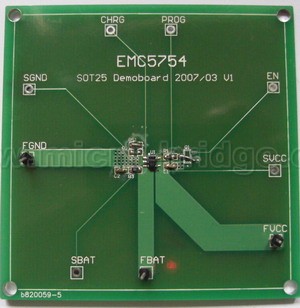

General Description
    The EMC5754 is a complete linear charger for single cell lithium-ion batteries. With small SOT-25 package and few external components, EMC5754 is well suited for portable applications. In addition, the EMC5754 is specifically designed to work within USB power specifications.
    No external sense resistor and blocking diode are required. Charging current can be programmed externally with a single resistor. The built-in thermal regulation facilitates charging with maximum power without risk of overheating.
    The EMC5754 always preconditions the battery with 1/10 of the programmed charge current at the beginning of a charge cycle, until 40μs after it verifies that the battery can be fast-charged. The EMC5754 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
    The EMC5754 consumes zero reverse current from the battery at standby, shutdown and sleep modes. This feature reduces the charge and discharge cycles on the battery, further prolonging the battery life. The EMC5754 can also be used as a LDO when battery is removed. Other features include shutdown mode, charge current monitor, under voltage lockout, automatic recharge and status indicator.

Features
 Programmable charge current up to 1A
 No MOSFET, sense resistor or blocking diode required
 Complete linear charger in SOT-25 for single cell Lithium-ion batteries
 Typical zero reverse current from battery
 Thermal regulation maximizes charge rate without risk of overheating
 Charges single cell Li-ion batteries directly from USB port
 Act as a LDO when battery is removed
 Preset 4.2V charge voltage with ±1% accuracy
 Automatic recharge
 Charge status indicator
 C/10 charge termination
 45μA shutdown supply current
 2.9V trickle charge threshold
 Soft-start limits inrush current
 RoHS compliant and Pb-free

Applications
 Wireless handsets
 Hand-held instruments
 Portable information appliances
 Bluetooth application
 Charging docks and cradles


Li-Ion Battery Charger(锂电池充电管理)
Part No.
Charge Current(MAX)
Cell
Type
Vin
Vout
Package
Features
Compatible
EMC5754 1A 1 Linaer 4.25~5.5V 4.1,4.2,4.3V SOT23-5,ESOP-8 Integrated MOS/Thermal Regulation -
EMC5755 1.2A 1 Linear 4.25~5.5V 4.2V TDFN-6 Integrated MOS/Thermal Regulation -
EMC5040 1.2A 1 Linear 4.25~13.5V 4.2V TDFN-10 Integrated MOS/Thermal Regulation -
EMC5042 1.2A 2 Linear 9~13.5V 8.4V TDFN-10 Integrated MOS/Thermal Regulation(two-cell) -
EMC5045 1.2A 1 Linear 4.5~13.5V 4.2V SOP-8 Integrated MOS/Thermal Regulation -
EMC5046 1.2A 2 Linear 9~13.5V 8.4V SOP-8 Integrated MOS/Thermal Regulation(two-cell) -
EMC5050 1.5A 1 Linear 4.6~5.5V 4.2V TDFN-16 Timer TS,带睡眠模式 -
EMC5051 2A 1 Linear 4.6~5.5V 4.2V TDFN-16 Timer TS,带睡眠模式 -
EMC5060 2A(1.5+0.5) 1 Linear 4.35~16V 4.4,5.0,6V TQFN-20 with System Power Management -
EMC5070 2.1A 1 PWM 4.5~6.5V 4.2V TDFN-20 Timer TS,带睡眠模式 -
PT6103 800mA 1 Linear 4.25~5.5V 4.2V SOT23-6,ESOP-8 内置MOS,热保护, -
PT6107 1.5A 1 PWM 4.5~13.5V 4.2V QFN4*4-16 同步开关单节锂电充电 -
PT6108 2.5A 1 PWM 4.5~13.5V 4.2V QFN-24 同步开关单节锂电充电-电源路径管理 -
PT6112 800mA 1 Linear 4.25~5.5V 4.2V SOT23-5,ESOP-8 内置MOS,集成热调节 -
EUP8010X 1A 1 Linear 4.35~5.5V 4.2V TDFN-10,EMSOP-8 Integrated MOS/Timer BQ24010/2/3/4
EUP8020X 1A 1 Linear 4.35~5.5V 4.2V TDFN-10 Integrated MOS/Timer/USB Charging BQ24020/2/3/4/6,LM3658
EUP8060X 1A 1 Linear 4.5~16V 4.2V TDFN-10 Integrated MOS/OVP BQ24060
EUP8054/X 800mA 1 Linear 4.35~5.5V 4.2V TSOT23-5,TDFN-6 Integrated MOS LTC4054
EUP8051/A 1A 1 Linear 4.5~7V 4.1,4.2V SOP-8,MSOP-8,TSSOP8 External MOS BQ2057,RT9501,AT1457
EUP8057 1A 1~2 Linear 4.5~15V 4.1,4.2,8.2,8.3,8.4V SOP-8,MSOP-8,TSSOP8 External MOS BQ2057
EUP8075 1.5A 1 Linear 4.35~24V 4.3V TQFN-16 Integrated With System Power-Path Management BQ24075
EUP8092 2A 1 Linear 4.5~5.5V 4.2V TQFN-16,TDFN-10 Integrated MOS/Timer ISL6292
EUP8095 1.5A 1 Linear 4.5~5.5V 4.2V TQFN-16,TDFN-10 Integrated MOS/Timer ISL9205D
EUP8202 3A 1~2 PWM 4.7~20V 4.2,8.4V TDFN-10,SOP-8 Switch mode LTC4002,3H Timer
EUP8207 3A 1~2 PWM 4.7~20V 4.2,8.4V SOP-8 Switch mode LTC4002,7H Timer
EUP8209 3A 1~2 PWM 4.7~20V 4.2,8.4V SOP-8 Switch mode LTC4002,12H Timer
EUP8217 2A 2 PWM 4.5~20V 4.2V TQFN-28 Switch mode USB/Charger Detection
EUP8218 2A 1 PWM 4.5~20V 4.2V TQFN-28 Switch mode USB/Charger Detection
FP8102 1A 1 Linear 4.25~5.5V 4.2V SOP-8 OTP -
