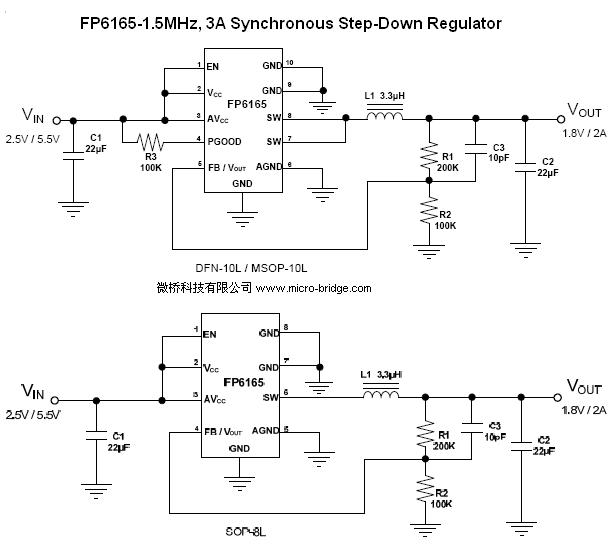

FP6165-1.5MHz,3A Synchronous Step-Down Regulator


FP6165-1.5MHz, 3A Synchronous Step-Down Regulator
General Description
Download
 The FP6165 is a high efficiency current mode synchronous buck PWM DC-DC regulator. The internal generated 0.6V precision feedback reference voltage is designed for low output voltage. Low RDS(ON) synchronous switch dramatically reduces conduction loss. To extend battery life for portable application, 100% duty cycle is supported for low-dropout operation. Shutdown mode also helps saving the current consumption. The FP6165 is packaged in MSOP-10L, DFN-10L and SOP-8L to reduce PCB space.
.

Features
˙Input Voltage Range: 2.5 to 5.5V
˙Adjustable Output Voltage From 0.6V to VIN
˙Precision Feedback Reference Voltage: 0.6V (±2%)
˙Output Current: 3A(Max.)
˙Duty Cycle: 0~100%
˙Internal Fixed PWM Frequency: 1.5MHz
˙Low Quiescent Current: 100μA
˙No Schottky Diode Required
˙Built-in Soft Start
˙Current Mode Operation
˙Over temperature Protection
˙Package: MSOP-10L(EP), DFN-10L, SOP-8L(EP)
