AX1110-350mA Low Dropout Linear Regulator

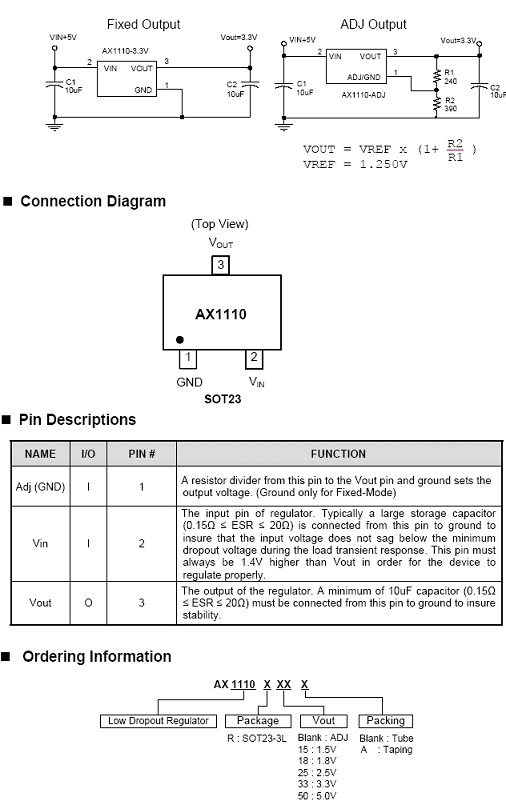

AX1110-350mA Low Dropout Linear Regulator DataSheet

GENERAL DESCRIPTION
    AX1110 is a low dropout positive adjustable or fixed-mode regulator with minimum of 350mA output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AX1110 is also well suited for other applications such as VGA cards. AX1110 is guaranteed to have lower than 1.2V dropout at full load current making it ideal to provide well-regulated outputs of 1.25 to 5.0 with 6.4V to 12V input supply.

FEATURES
- 1.2V maximum dropout at full load current
- Fast transient response
- Output Current Limiting
- Built-in Thermal Shutdown
- Good noise rejection
- 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Packages: SOT23-3L
