FP5138/FP5138B--Step-Up DC/DC Controller

>>> Home > Product > Feeling-tech> FP5138

Features ﹡Wide supply voltage operating range: 1.8 to 15V ﹡Reference voltage precision: 4%(FP5138);2%(FP5138B) ﹡Low current consumption: Operation Mode 5.5mA/Standby-by Mode: 1μA ﹡High speed oscillator frequency: 1MHz max ﹡Programmable Soft Start function (SS) ﹡Short Circuit Protection function (SCP) ﹡Totem-pole output with adjustable on/off current(for NPN transistors or n-channel MOSFET) ﹡Logic level control stand-by mode function ﹡Package: SOP8,MSOP-8,TSOP-8				Applications ﹡LED Backlight for LCD Display ﹡Portable Equipment ﹡数码相框/便携式DVD LED背光屏驱动﹡移动电源太阳能电源等
				>>> FP5138 Data Sheet:	>>> FP5138B Data Sheet:
				>>> FP5138架构及Boost Converter应用说明:
				>>> FP5138 for LED application:
				>>> FP5138驱动MOS资料(N沟道)
				SPN4402(SOP-8)	SPN4412(SOP-8)
				SPN4850(SOP-8)	SPN4426(SOP-8)
				SPN2304(SOT-23)	SPN3414(SOT-23)

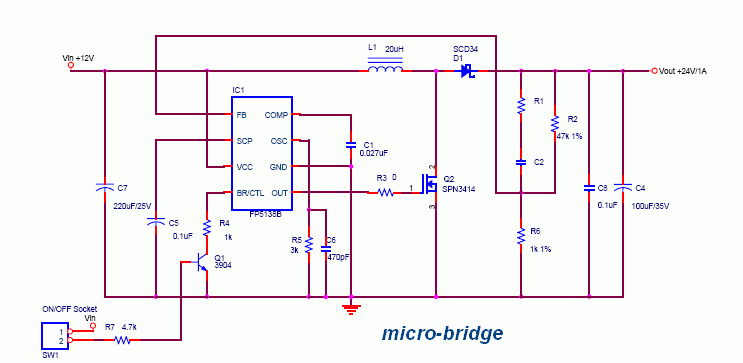

FP5138 Application Circuit:				﹡FP5138 12V to 24V 4A	﹡FP5138 9~28V to 12V 1A
FP5138 Order Information订购信息			Vref	﹡FP5138 2V to 5.5V 1A	﹡FP5138 3.2V~5V to 4V 1A
Product ID	Package	Packing	precision	﹡FP5138 15V to 28V 1.4A	﹡FP5138 5~5.8Vto5V 0.5A
FP5138DR-LF	SOP-8	2.5K/Reel	4%	﹡FP5138 3.6V to 17V 1A	﹡FP5138 5V~12V to 6V 1A
FP5138BWR-LF	TSOP-8	2.5K/Reel	2%	﹡FP5138 3V to 12V 1A	﹡More更多应用线路....
