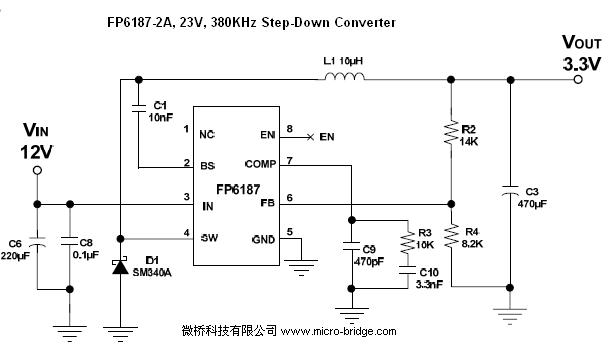

FP6187-2A, 23V, 380KHz Step-Down Converter


FP6187 2A, 23V, 380KHz Step-Down Converter
General Description
Download
The FP6187 is a buck regulator with a built-in internal power MOSFET. It can provide 2A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. The device includes cycle-by-cycle current limiting and thermal shutdown protection. The regulator only consumes 23A supply current in shutdown mode. The FP6187 requires a minimum number of readily available external components to complete a 2A buck regulator solution.

Features
2A Output Current
0.22 Internal Power MOSFET Switch
Stable with Low ESR Output Ceramic Capacitors Up to 95% Efficiency
23A Shutdown Mode Current
Fixed 380KHz frequency
Thermal Shutdown
Cycle-by-Cycle Over Current Protection
Wide 4.75 to 23V Operating Input Range
Output Adjustable From 1.23 to 21V
Available SOP-8L Package
Under Voltage Lockout
