SPE0522-2-Line ESD Protection Array


SPE0522-2-Line ESD Protection Array DataSheet

DESCRIPTION
    The SPE0522 are designed by TVS bi-direction device that
is to protect sensitive electronics from damage or latch-up
due to ESD. They are designed for use in applications
where board space is at a premium. SPE0522 will protect
up to two lines, and may be used on lines where the signal
polarities swing above and below ground.
    SPE0522 offer desirable characteristics for board level
protection including fast response time, low operating and
clamping voltage, and no device degradation.
    SPE0522 may be used to meet the immunity requirements
of IEC 61000-4-2, level 4. The small SOT-523 package
makes them ideal for use in portable electronics such as
cell phones, PDA’s, notebook computers, and digital
cameras.

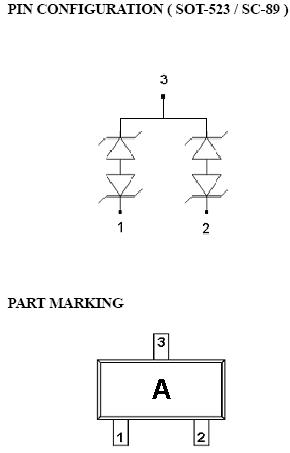

FEATURES
􀂋 Transient protection for data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
􀂋 Protects two I/O lines
􀂋 Working voltage: 5V
􀂋 Low leakage current
􀂋 Low operating and clamping voltages

APPLICATIONS
􀂋 Cellular Handsets and Accessories
􀂋 Cordless Phone
􀂋 PDA
􀂋 Notebooks and Handhelds
􀂋 Portable Instrumentation
􀂋 Digital Cameras
􀂋 MP3 Player

No. TYPE V(BR) VRWM IR PPK IPP Cj Package
(Min) (Max) (Max) (8/20 us) (8/20 us) (Typ)
V V uA W A pF
SPE0589 1 -Line TVS Diode (Unidirectional) 6 5 1 180 7 0.5 FBP-02C
SPE9X5VU 1 -Line TVS Diode (Unidirectional) 6 5 1 180 7 0.5 FBP-02C
SPE0592 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 2 FBP-02C
SPE6V8UH 4 -Line TVS Diode 6 5 1 180 7 0.35 MSOP-10L
SPE0581 4 -Line TVS Diode 6 5 1 180 7 0.35 DFN-10
SPE6V8UD 4 -Line TVS Diode 6 5 1 180 7 0.35 DFN-10
SPE0571 1 -Line TVS Diode (Unidirectional) 6 5 1 250 7 10 SOD-723
SPE0572 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 5 SOD-723
SPE0573 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 2 SOD-723
SPE0588 1 -Line TVS Diode (Unidirectional) 6 5 1 250 7 0.5 SOD-523
SPE5Z5VU 1 -Line TVS Diode (Unidirectional) 6 5 1 250 7 0.5 SOD-523
SPE0511 1 -Line TVS Diode (Unidirectional) 6 5 1 250 7 10 SOD-523
SPE0521 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 5 SOD-523
SPE0531 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 2 SOD-523
SPE1211 1 -Line TVS Diode (Unidirectional) 13.3 12 1 250 8 16 SOD-523
SPE0562 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 5 SOD-323
SPE0512 2 -Line TVS Array 6 5 1 250 7 10 SOT-523
SPE0522 2 -Line TVS Array (Bidirectional) 6 5 1 250 7 5 SOT-523
SPE1212 2 -Line TVS Array 13.3 12 1 250 8 16 SOT-523
SPE0514 4 -Line TVS Array 6 5 1 250 7 10 SOT-563
SPE0515 5 -Line TVS Array 6 5 1 250 7 10 SOT-563
SPE0582 2 -Line TVS Array 6 5 1 180 5 0.35 SOT-353
SPE6V8UN 2 -Line TVS Array 6 5 1 180 5 0.7 SOT-353
SPE0583 4 -Line TVS Array 6 5 5 250 5 0.35 SOT-363
SPE6V8UW 4 -Line TVS Array 6 5 5 250 5 0.7 SOT-363
SPE0523 5 -Line TVS Array 6 5 1 250 7 2 SOT-363
SPE0526 5 -Line TVS Array 6 5 1 250 7 5 SOT-363
SPE0534 4 -Line TVS Array 6 5 1 250 7 10 SOT-363
SPE0535 5 -Line TVS Array 6 5 1 250 7 10 SOT-363
SPE1225 5 -Line TVS Array 13.3 12 1 250 8 16 SOT-363
SPE0532 2 -Line TVS Array (Bidirectional) 6 5 1 250 7 5 SOT-23
SPE0599 1 -Line TVS Diode (Bidirectional) 6 5 1 250 7 5 SOT-23
SPE0584 4 -Line TVS Array 6 5 5 250 5 0.35 SOT-23-6L
SPE6V8UF 4 -Line TVS Array 6 5 5 250 5 0.7 SOT-23-6L
SPE0525 5 -Line TVS Array 6 5 1 250 7 2 SOT-23-6L
SPE0504 4 -Line TVS Array 6 5 1 250 7 10 SOT-23-6L
SPE0505 5 -Line TVS Array 6 5 1 250 7 10 SOT-23-6L
SPE0506 5 -Line TVS Array 6 5 1 250 7 10 SOT-23-6L
SPE0524 3 -Line TVS Array 6 5 1 250 7 2 SOT-143A
SPE0544 3 -Line TVS Array 6 5 1 250 7 5 SOT-143-A
SPE1244 3 -Line TVS Array 13.3 12 1 250 8 10 SOT
