AC-DC
<<< Back
Primary Side Regulation PWM Power Switch(一次侧控制PWM功率开关)
Part No.
Features
PWout
Package
Intro
Replace
SD4851 集成一次侧PWM控制器和高压MOSFET(无需光耦,431和X电容) 5W SOP-8
---
OB2211H 集成一次侧PWM控制器和高压MOSFET(无需光耦,431和X/Y电容) 10W SOP-8
---
OB2212 集成一次侧PWM控制器和高压MOSFET(无需光耦,431和X/Y电容) 20W DIP-8
---
OB2535 High Precision CC/CV Primary-Side PWM Power Switch 6W SOP-8
---
ACT355 Primary Switching Regulators IC(无需光耦、431) 5W SIP-4,SOT23-5
---
PWM Power Switch(PWM功率开关)
SD4840 内置高压MOS功率电源转换器 7W DIP-8
---
SD4841 内置高压MOS功率电源转换器 12W DIP-8
---
SD4842 内置高压MOS功率电源转换器 14W DIP-8
---
SD4843 内置高压MOS功率电源转换器 15W DIP-8
---
SD4844 内置高压MOS功率电源转换器 18W DIP-8
---
OB2352 集成高压MOSFET+频谱扩展(frequency shuffling),No Y-Cap 15W DIP-8
---
OB2353 集成高压MOSFET+频谱扩展(frequency shuffling),No Y-Cap 10W SOP-8
---
OB2354 集成高压MOSFET+频谱扩展(frequency shuffling),No Y-Cap 25W DIP-8
---
OB2358 集成高压MOSFET+频谱扩展(frequency shuffling),No Y-Cap 25W DIP-8
---
PWM Controller (PWM控制芯片)
SP6850 Green-Mode PWM Controller 30W SOT23-6,DIP-8
SG6848,OB2263
SP6853 Green-Mode PWM Controller 30W SOT23-6,DIP-8
LD7550,OB2263
OB2262 低功率脉宽调制PWM控制芯片Low Power PWM Control IC 30W SOT23-6,SOP-8
LD7550,SG6848
OB2263 Low Power PWM Control IC+频率抖动(Frequency shuffling) 30W SOT23-6,SOP-8
LD7550,SG6848
OB2268 高集成度脉宽调制PWM控制芯片PWM IC for Medium Power 150W SOP-8,DIP-8
LD7552,SG6841
OB2269 PWM IC for Medium Power+频率抖动(Frequency shuffling) 150W SOP-8,DIP-8
LD7555,SG6841
OB2278 带有锁定功能的PWM控制芯片PWM Control Latch Shutdown 150W SOP-8,DIP-8
---
OB2279 PWM Control IC with Latch Shutdown+Frequency shuffling 150W SOP-8,DIP-8
---
ACT30A High Performance Off-Line Controller 5W TO-92
---
ACT30B High Performance Off-Line Controller 15W TO-92
---
ACT50 High Performance Off-Line Controller 25W SOT23-5,DIP-8
---
PT2201 High intergrated current Mode PWM Controller 75W SOP-8,DIP-8
---
SD487 Green-Mode PWM Controller 60W SOP-8,DIP-8
---
QR Mode PWM Controller(QR模式控制)
OB2203 多模式准谐振PWM控制芯片Quasi Resonant PWM Controller --- SOP-8,DIP-8
---
Power Factor Correction(功率因素校正)
SA7525 功率因子校正(临界导通模式)控制器 CCM Mode PFC Controller SOP-8,DIP-8
ST6561,ST6563
OB6561P 有源功率因子校正控制器 Performance Enhanced SOP-8,DIP-8
ST6561
OB6563 有源功率因子校正控制器 Performance Enhanced SOP-8,DIP-8
ST6563
Syncpower Synchronous Rectifier Driver IC(同步整流电源管理IC)
SP6003A Flyback Synchronous Rectifier Driver(返驰式) SOP-8
(App_Notes)
SP6013A Flyback Synchronous Rectifier Driver(返驰式) SOP-8
(App_Notes)
SP6002 Forward Synchronous Rectifier Driver(顺向式) SOP-8
(App_Notes)
SP6012 Forward Synchronous Rectifier Driver(顺向式) SOP-10
---
SP6018 Resonant Topology Synchronous Rectifier Driver(谐振式) SOP-8
---
AC-DC CV/CC/OLP IC(AC-DC恒压、恒流、开路保护IC)
Part NO
Functions
 OP.voltage Package Datasheet Other
VREF O/P CV CC OCP
FP103 2.5V TP V V V 3.0-32 PDIP8/SOP8
FP115 1.25V OE V - V 2.5-12 SOT-25
FP701 1.25V OC X X X 3.0-20 SOT-25
FP130/A X - X X V 2.7-25(28) SOT-25
FP131 X OC X X V 2.7-28 SOP8
FP132 2.5V - V V X 2.7-28 SOP8
FP133 2.5V OC V X V 2.7-28 SOP8
FP120 X - X X V 2.7-15 SOP8/SOT-25
FP3510 PGI OC OVP UVP X 4-15 PDIP8/SOP8

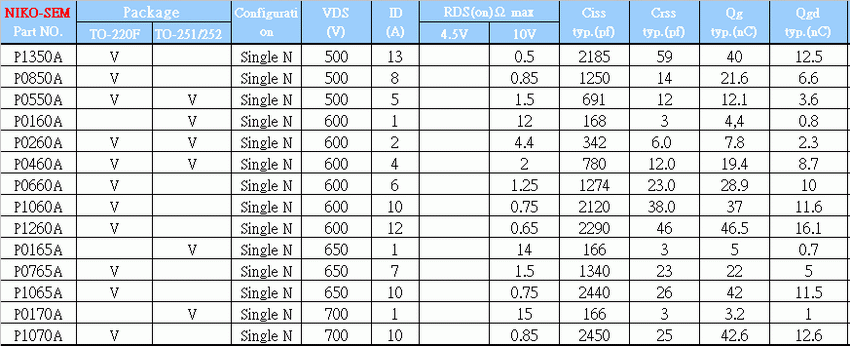

VD-MOS管
Part No.
BVDSS
 ID
VGS
Vth

RDS(ON)Typ VGS=10V

 Package
Datasheet
 Application
1N60 600V 1A ± 30V 2.1V(min) 14.5Ω(max) DPAK/IPAK
Charger
7N60 600V 7A ± 30V 2.2V(min) 1.2Ω(max) TO-220/F
SMPS/HID LAMP
Voltage Reference(电压参考)
SP431 High Voltage Adjustable Precision Shunt Regulators 2.5V 0.5% 1% TO-92
SP432 Low Voltage Adjustable Precision Shunt Regulators 1.24V 0.5% 1% TO-92,SOT-23,SOT,353
AX431 Low Voltage Adjustable Precision Shunt Regulators 1.24V 0.5% 1% TO-92,SOT-23,SOT,353
AX432 High Voltage Adjustable Precision Shunt Regulators 2.5V 0.5% 1% TO-92
※※※AC85~265V(110V&22V) LED lighing driver((1W&3W~300W) GU10/EE27/MR-16,Streelamp... ) ODM(提供设计服务)
