SPP4953W-Dual P-Channel Enhancement Mode MOSFET DataSheet
The SPP4953W is the Dual P-Channel logic enhancement
mode power field effect transistors are produced using
high cell density , DMOS trench technology.
This high density process is especially tailored to
minimize on-state resistance.
These devices are particularly suited for low voltage
application , notebook computer power management and
other battery powered circuits where high-side
-30V/-5.4A,RDS(ON)= 65mΩ@VGS=- 10V
Super high density cell design for extremely low RDS (ON)
Exceptional on-resistance and maximum DC current capability

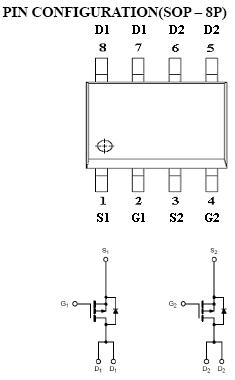

SOP – 8P package design
Power Management in Note book
Battery Powered System
LCD Display inverter
